Design Parameters
Max Design Pressure:
|
125 psi (g), 8.6 bar (g)
|
Max Allowable Working Pressure:
|
75 psi (g), 5 bar (g)
|
Max Flow Rate:
|
600GPM, 135 M3/H
|
Temperature Range
|
Buna N 1500
|
-29°C - 121° C (-20°F - 250°F )
|
| |
Fluorocarbon
|
-29°C - 204° C (-20°F - 400°F) |
| |
EPT E 692
|
-46°C - 107° C (-50°F - 225°F ) |
| |
Kalrez®
|
-18°C - 260° C (0°F - 500°F) |
Weight:
|
21 lbs (9.5 kg)
|
| Pressure Drop (At Max Flow Rate) |
2-5 psi (g), .24 bar (g)
|
*Unit tested to 21 bar (300psi) in closed position to withstand excessive thermal expansion pressures. Reference API standard RP-1004 for additional information.

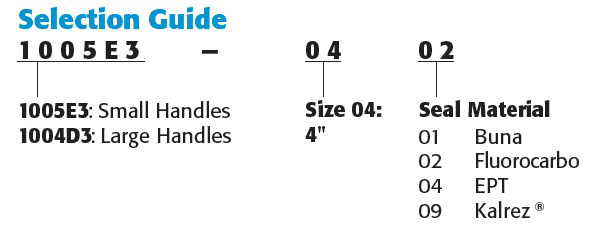

Seal Replacement Kit
The 1004D3SRK Seal Replacement Kit includes every required part to replace all seals in the 1005E3/1004D3 API Bottom Loading Coupler
Part Number
|
Seal Material |
| 1004D3SRK-0401 |
Buna-N Seal Replacement Kit |
| 1004D3SRK-0402 |
Fluorocarbon Seal Replacement Kit |
| 1004D3SRK-0404 |
EPT Seal Replacement Kit |
| 1004D3SRK-0409 |
Kalrez® Seal Replacement Kit |
The Safer, Cleaner, Faster Way to Load Your Transport
The 1005E3/1004D3 is the latest generation in API bottom -loading couplers from OPW. A proven performer at major oil terminals around the world, the 1005E3 incorporates several new features that make it the most user-friendly coupler on the market.
