Features & Benefits
• User Friendly Single-Action Operation – Entire fueling operation is initiated by simply engaging nozzle to the receptacle with a single squeeze of the hand.
• Hammer-Lock Technology – Maximum durability. Designed specifically for frequent coupling and uncoupling.
• Ergonomic Design – Insulated handle protects operator from temperature effects created by high flowing LP gas. Minimal force required to engage nozzle.
• Durable Construction – Heavy-duty brass, aluminum and stainless-steel construction provides excellent corrosion resistance in the harsh fueling environment.
• Ease-of-Use – Incorporates a single plane 360 degree inlet swivel.
• Safety – Will not dispense gas until securely engaged onto an appropriate receptacle. Once engaged, it will not disengage until released by operator.
• Individually Leak Tested and Inspected with Traceable Serial Numbers.
• Replaceable Rubber Cover – Deflects venting LP gas away from operator's hand.

Technical Specifications
• Maximum Operating Pressure: 350 psi (24 bar)
• LPG Discharge on Disconnect: 4.3 cc
• Weight: 3.08 lbs. (1.40 kg)
• Locking Release: Trigger on lever
• Coupling Style: Italian Style
• Temperature Range: -40° F to 185° F (-40° C to 85° C)
Also available in brass models.

Materials
Body: aluminum
Internal Components: brass and steel
Seals: specially formulated polymers and elastomers specific to LPG applications
External Components: brass, stainless steel, anodized aluminum

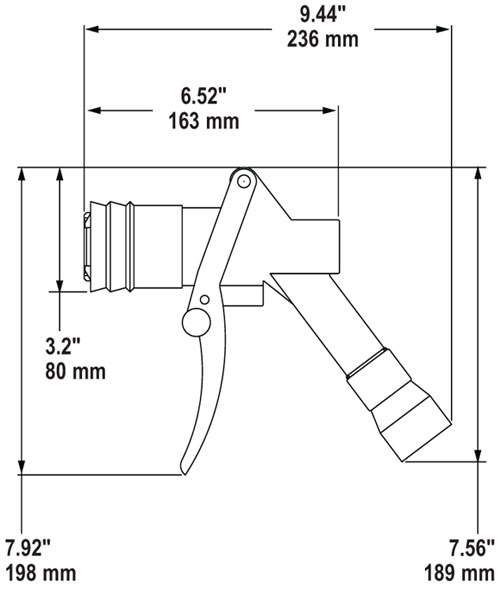

Dimensions

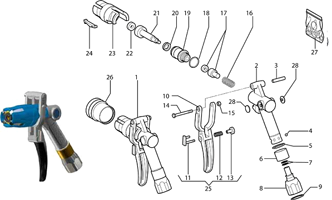

Spare Parts

#	Part #	Name	Qty
1.	T3	Complete Nozzle w/ alum separator	1
	T3B	Complete Nozzle w/ brass separator	1
	T3B-A	Complete Nozzle w/ brass separator	1
2.	OT301	Body	1
3.	OT302	Bushing	1
4.	OC001	Ball	6
5.	OC005	Flexible Ring	1
6.	OT303	Inner Frame	1
7.	OC010	Ring	2
8.	OT304	Junction	1
9.	OC011	Ring	1
10.	OT305	Lever	1
11.	OT306	Fork	1
12.	OT307	Spring	1
13.	OT308	Push Button	1
14.	OC030	Screw	1
15.	OC050	Nut	1
16.	OT309	Spring	1
17.	OT320	Complete Valve 1)	1
18.	OC012	O-Ring 1)	1
19.	OT312	Head 1)	1
20.	OC013	Gasket 1)	1
21.	OT313	Piston 1)	1
22.	OT314	Gasket 1)	1
23.	OT315	Sleeve ALUM	1
	OT315B	Sleeve BRASS	1
24.	OT316	Hammer	4
25.	OT317	Complete Fork	1
26.	OT420	Flexible Dust Cover	1
27.	OT319	Set Of Gaskets	1
28.	OT324	Disc	2
	OT3KIT	OT3 KIT ( 1) included)
