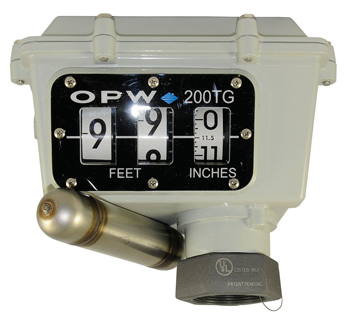

Features
- Vapor Tight - Allows for standard tank pressure testing and sealing up to 25-psig (1.72 bar).
- Angled Face - Improves visibility from ground on large diameter tanks. May be easily read up to 30 ft. away (9.14 m).
- Swivel Adaptor Base - Allows for 360 degrees of rotation of gauge face for easy viewing wherever needed.
- Easy Installation - 2" NPT-threaded base reduces labor time, and comes standard with female thread. A "H11421RS" may be purchased for male thread applications.
- Corrosion-Resistant Construction - A powder-coated die cast-aluminum body assures long service life in many fluids.
- Drop Tube - Prevents float entanglement in the tank, and gives the gauge a more accurate reading when turbulence is present. (Drop Tubes sold separately. They are recommended for use in tanks with high turbulence, and where other piping and structures inside the tank may cause entanglement.)
- Float Buoyancy - Designed to float in all fluids with a specific gravity of 0.65 and greater.
- Tank Height - Unit designed for use on any horizontal or vertical aboveground tank up to 18 ft. (5.5 m) in depth. Specials available upon request.
- Numbering - Black letters on white background for ultimate contrast and better visibility. Characters stand over 1" (25 mm) tall.
- Unit Measurement - Can be purchased in metric units to read in meters, 1/10, 1/100, or in English units to read in feet and inches.
- Maintenance - No annual maintenance required.
- U.S. Patent No.: 6,523,404 - Other Patents Pending.
- Compatible Fuels - See char
Listings and Certifications
Underwriters Laboratory Listed - UL Listed MH29367. Liquid level gauges which are intended to be used on aboveground storage tanks and monitor the level of petroleum-based flammable or combustible fluids.
|
