Features & Benefits

• User Friendly Single-Action Operation - Entire fueling operation is initiated by simply engaging nozzle to the receptacle with a single squeeze of the hand.
• New Ergonomic Design - two resin shells insulate and protect the internal parts from falls and the operator from the effects of the low temperature generated by the high flow LPG. Minimum effort is required to couple the nozzle and the ergonomic release button makes release easier. With lever guard.
• Ease of Use - Incorporates a single plane 360 degree inlet swivel.
• Individually Leak Tested and Inspected with Traceable Serial Numbers.
• Low Vent Volume upon disconnect: 1.6cc.
• Replaceable Rubber Cover (optional) - Deflects venting LP gas away from operator's hand.
• Nylon/Fiberglass Hand Insulator - Protects operator from low temperature effects created by high flow LPG gas.

Technical Specifications
• Maximum Operating Pressure: 350 psi (24 bar)
• LPG Discharge on Disconnect: 1.6 cc
• Weight: 3.52 lbs. (1.60 kg)
• Locking Release: Push Button on Body
• Coupling Style: Italian Style
• Temperature Range: -40° F to 212° F (-40° C to 100° C)

Materials
Body: aluminum
Internal Components: brass and steel
Seals: specially formulated polymers and elastomers specific to LPG applications
External Components: aluminum, stainless steel, brass

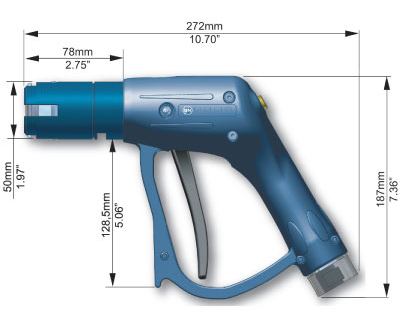

Dimensions

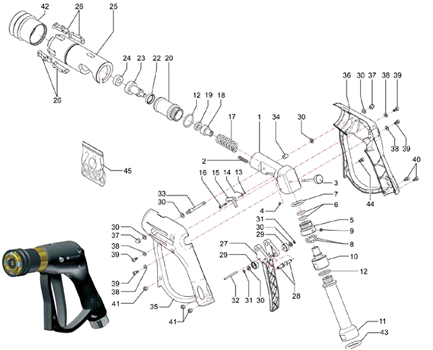

Spare Parts

#		Part #		Name	Price	#	Part #		Name	Price
		BN300B-HG	Nozzle			23	SB320	Piston
	1	SB301	Spring			24	OT314	Gasket NBR
	2	SB312	Push Button			25	PSB313B	Sleeve
	3	SB303	Seeger			26	OT412	Hammer
	4	OC223	Junction			27	SB306	Lever
	5	SB309	O-Ring 3056 (118) NBR			28	SB305	Pin
	6	OC010	O-Ring - 4091 (126) NBR			29	SB304	Roller Delrin
	7	OC012	Ball			30	OC072	Washer Ø5
	8	OC003	Screw			31	OC212	Seeger
	9	OC034	Junction			32	SB322	Pin Ø3x36
10		SB310	Junction			33	SB302	Lever Pin
11		SB311	O-Ring - 132 NBR			34	OC218	Bushing
12		OC023	Spacer Ø3x5x2 Nylon			35	SB314	SX Guard
13		OC225	Hook Spring			36	SB315	DX Guard
14		SB308	Hook			37	OC219	Nut M5
15		SB307	Bolt M3x16			38	OC220	Washer Ø4x9x0,8
16		OC224	Spring			39	OC215	Bolt M4x8
17		OT407	Valve			40	OC222	Bolt M4x12
18		SB321	Gasket			41	OC211	Nut M4
19		PSA919	Head			42	OT420	Dust Cover NBR
20		SB319	Gasket NBR			43	OC011	O-Ring- 4112 (136) NBR
22		OC013	Gasket			45	SB317	Set of gaskets
