Features & Benefits

• User Friendly Single-Action Operation – Entire fueling operation is initiated by simply engaging nozzle to the receptacle with small twist and a single squeeze of the hand.
• New Ergonomic Design – two resin shells insulate and protect the internal parts from falls and the operator from the effects of the low temperature generated by the high flow LPG. Minimum effort is required to couple the nozzle and the ergonomic release button makes release easier.
• Ease-of-Use – Incorporates a single plane 360 degree inlet swivel.
• Individually Leak Tested and Inspected with Traceable Serial Numbers.
• Low Vent Volume upon disconnect: 1.6cc.
• Replaceable Rubber Cover (optional) – Deflects venting LP gas away from operator's hand.
• Nylon/Fiberglass Hand Insulator – Protects operator from low temperature effects created by high flow LPG gas.

Technical Specifications
• Maximum Operating Pressure: 362 psi (25 bar)
• LPG Discharge on Disconnect: 1.6 cc
• Weight: 3.41 lbs. (1.55 kg)
• Locking Release: Push Button on Body
• Coupling Style: Italian Style
• Temperature Range: -40° F to 212° F (-40° C to 100° C)

Materials
Body: aluminum
Internal Components: brass and steel
Seals: specially formulated polymers and elastomers specific to LPG applications.
External Components: aluminum and stainless steel
Dimensions

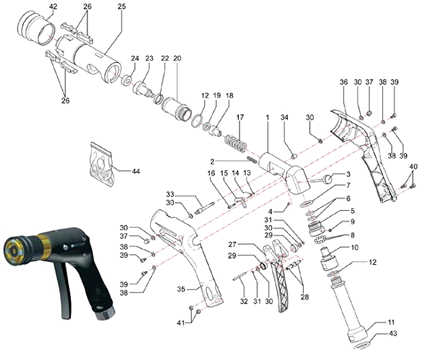

Spare Parts

#	Part #	Name		#	Part #	Name
	BN300B	BODY		23	SB320	Piston
1	SB301	Spring		24	OT314	Gasket NBR
2	SB312	Push Button		25	PSB313B	Sleeve
3	SB303	Seeger		26	OT412	Hammer
4	OC223	Junction		27	SB306	Lever
5	SB309	O-Ring 3056 (118) NBR		28	SB305	Pin
6	OC010	O-Ring - 4091 (126) NBR		29	SB304	Roller Delrin
7	OC012	Ball		30	OC072	Washer Ø5
8	OC003	Screw		31	OC212	Seeger
9	OC034	Junction		32	SB322	Pin Ø3x36
10	SB310	Junction		33	SB302	Lever Pin
11	SB311	O-Ring - 132 NBR		34	OC218	Bushing
12	OC023	Spacer Ø3x5x2 Nylon		35	SB314	SX Guard
13	OC225	Hook Spring		36	SB315	DX Guard
14	SB308	Hook		37	OC219	Nut M5
15	SB307	Bolt M3x16		38	OC220	Washer Ø4x9x0,8
16	OC224	Spring		39	OC215	Bolt M4x8
17	OT407	Valve		40	OC222	Bolt M4x12
18	SB321	Gasket		41	OC211	Nut M4
19	PSA919	Head		42	OT420	Dust Cover NBR
20	SB319	Gasket NBR		43	OC011	O-Ring- 4112 (136) NBR
22	OC013	BODY		44	SB317	Gasket
